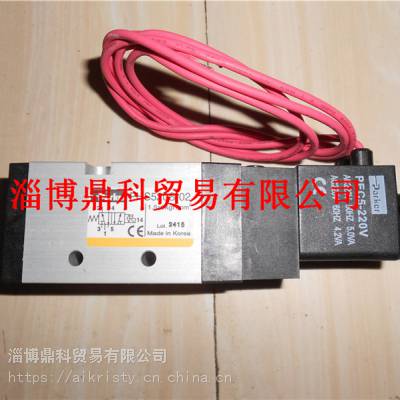

PARKER派克直动式气动阀 电磁换向阀PHS520S-02现货低价格销售

PHS520S-02

PHS320/510/520/530/540-单气控或双气控3通和5通先导式电磁阀

PHS系列，三通和五通先导式电磁阀尺寸紧凑，流量大。

PHS系列可提供很多不同选项包括手动控制和三种不同的电输入。

面板安装的PHS电磁阀具有低功耗，大流量，快速响应和清洁的外形设计。

PHS系列产品广泛应用于汽车、包装、特种机械、机床等行业。

尺寸紧凑

重量轻

大流量

低功耗

各种附件类型

允许电压波动±10%

货号：PHS520S-02

阀类型:2-Way

位置数量:2 Position Single Solenoid

端口数量:5

流体容量(CV):1

端口尺寸:1/4"

覆盖机能:Non-Locking

性能特点

驱动 电磁气控

安装形式 管接式

最多出口种类 15

端口类型 PT

证书 CE

压力范围（PSI) 22至130

压力范围（BAR) 1.5至9

温度范围（C) 5 至 60

温度系数(F) 41 至 160

介质 空气 润滑 非润滑/润滑空气

阀体材料 氧化铝

密封材料 丁晴橡胶

PHS520S-02

PHS520S-8 PHS520S-02 5/2 Way Single Solenoid

PHS520D-8 PHS520D-02 5/2 Way Double Solenoid

PHS520C-8 PHS520C-02 5/3 Way Center Closed

PHS520E-8 PHS520E-02 5/3 Way Exhaust Center

PHS520P-8 PHS520P-02

PHS520-BP

PHS520S-8-110V

PHS520S-02-110V

PHS520S-8-110V-D

PHS520S-02-110V-D

PHS520S-8-110V-D-L

PHS520S-02-110V-D-L

PHS520S-8-220V-D

PHS520S-02-220V-D

PHS520S-8-24V

PHS520D-02-24V

PHS520S-8-24V-D

PHS520S-02-24V-D

PHS520S-8-24V-DL

PHS520S-02-24V-DL

PHS520S-8-L

PHS520S-02-L

PHS520S-N8

PHS520S-N02

PHS520E-8-24V-DL

PHS520E-02-24V-DL

PHS520D-8-110V-D

PHS520D-02-110V-D

PHS520D-8-220V-D

PHS520D-02-220V-D

PHS520D-8-24V

PHS520D-02-24V

PHS520D-8-24V-D

PHS520-02-24V-D

PHS520D-8-24V-D-L

PHS520D-02-24V-D-L

PHS520C-8-24V

PHS520C-02-24V

PHS510P-6-110V-L

派克2位5通电磁阀***

PHS510P-6-110V-D特***惠

PHS510P-6-220V-D***

PHS510P-6-24V-D-L派克电磁阀***

PHS510P-6-24V-D-L派克电磁阀优惠

PHS520S-8-24V***

PHS520C-8-24V***现货

PHS520D-8-220V***现货

PHS520D-8-110V派克电磁阀***

PHS520S-8-220V-FL升级为PHS520S-02-220V-FL***

PHS510S-6-110V PHS510S-6-220V PHS510S-6-24V-L PHS510S-6-110V-L PHS510S-6-220V-L PHS510S-6-24V-D PHS510S-6-110V-D PHS510S-6-220V-D PHS510S-6-24V-D-L   PHS520S-8-110V派克原装电磁阀供应 PHS510S-6-110V-D-L PHS510S-6-220V-D-L PHS510S-6-24V-DL PHS510S-6-110V-DL PHS510S-6-220V-DL PHS510S-6-24V-DL-L PHS510S-6-110V-DL-L PHS510S-6-220V-DL-L PHS510C-6-24V PHS510C-6-110V PHS510C-6-220V PHS510C-6-24V-L PHS510C-6-110V-L PHS510C-6-220V-L PHS510C-6-24V-D PHS510C-6-110V-D PHS510C-6-220V-D PHS510C-6-24V-D-L PHS510C-6-110V-D-L PHS510C-6-220V-D-L PHS510C-6-24V-DL PHS510C-6-110V-DL PHS510C-6-220V-DL PHS510C-6-24V-DL-L PHS510C-6-110V-DL-L PHS510C-6-220V-DL-L PHS510P-6-24V PHS510P-6-110V PHS510P-6-220V PHS510P-6-24V-L PHS510P-6-110V-L PHS510P-6-220V-L PHS510P-6-24V-D PHS510P-6-110V-D PHS510P-6-220V-D PHS510P-6-24V-D-L PHS510P-6-110V-D-L PHS510P-6-220V-D-L PHS510P-6-24V-DL PHS510P-6-110V-DL PHS510P-6-220V-DL PHS510P-6-24V-DL-L PHS510P-6-110V-DL-L PHS510P-6-220V-DL-L PHS510D-6-24V PHS510D-6-110V PHS510D-6-220V PHS510D-6-24V-L PHS510D-6-110V-L PHS510D-6-220V-L PHS510D-6-24V-D PHS510D-6-110V-D PHS510D-6-220V-D PHS510D-6-24V-D-L PHS510D-6-110V-D-L PHS510D-6-220V-D-L PHS510D-6-24V-DL PHS510D-6-110V-DL PHS510D-6-220V-DL PHS510D-6-24V-DL-L PHS510D-6-110V-DL-L PHS510D-6-220V-DL-L PHS510S-6-24V-L派克2位5通电磁阀*** PHS510E-6-24V PHS510E-6-110V PHS510E-6-220V PHS510E-6-24V-L PHS510E-6-110V-L PHS510E-6-220V-L PHS510E-6-24V-D PHS510E-6-110V-D PHS510E-6-220V-D PHS510E-6-24V-D-L PHS510E-6-110V-D-L PHS510E-6-220V-D-L PHS510E-6-24V-DL PHS510E-6-110V-DL PHS510E-6-220V-DL PHS510E-6-24V-DL-L PHS510E-6-110V-DL-L PHS510E-6-220V-DL-L PHS510-M2 PHS510-M3 PHS510-M4 PHS510-M5 PHS510-M6 PHS510-M7 PHS510-M8 PHS510-M9 PHS510-M10 PHS510-M11 PHS510-M12 PHS510-BP  PHS520S-8-24V 升级为PHS520S-02-24V PHS520S-8-110V 升级为PHS520S-02-110V PHS520S-8-220V升级为PHS520S-02-220V PHS520S-8-24V-FL升级为PHS520S-02-24V-FL PHS520S-8-110V-FL升级为PHS520S-02-110V-FL PHS520S-8-220V-FL升级为PHS520S-02-220V-FL PHS520D-8-24V升级为PHS520D-8-24V PHS520D-8-110V升级为PHS520D-8-110V PHS520D-8-220V升级为PHS520D-8-220V PHS520C-8-24V升级为PHS520C-8-24V PHS520C-8-110V升级为PHS520C-8-110V PHS520C-8-220V升级为PHS520C-8-220V PHS520E-8-24V升级为PHS520E-8-24V PHS520E-8-110V升级为PHS520E-8-110V PHS520E-8-220V升级为PHS520E-8-220V PHS520P-8-24V升级为PHS520P-8-24V PHS520P-8-110V升级为PHS520P-8-110V PHS520P-8-220V升级为PHS520P-8-220V PHS520S-8-24V-D升级为PHS520S-8-24V-D PHS520S-8-110V-D升级为PHS520S-8-110V-D PHS520S-8-220V-D升级为PHS520S-8-220V-D PHS520D-8-24V-D升级为PHS520D-8-24V-D PHS520D-8-110V-D升级为PHS520D-8-110V-D PHS520D-8-220V-D升级为PHS520D-8-220V-D PHS520D-8-24V-FL升级为PHS520D-8-24V-FL PHS520D-8-110V-FL升级为PHS520D-8-110V-FL PHS520D-8-220V-FL升级为PHS520D-8-220V-FL PHS520C-8-24V-FL升级为PHS520C-8-24V-FL PHS520C-8-110V-FL升级为PHS520C-8-110V-FL PHS520C-8-220V-FL升级为PHS520C-8-220V-FL PHS520E-8-24V-FL升级为PHS520E-8-24V-FL PHS520E-8-110V-FL升级为PHS520E-8-110V-FL PHS520E-8-220V-FL升级为PHS520E-8-220V-FL PHS520P-8-24V-FL升级为PHS520P-8-24V-FL PHS520P-8-110V-FL升级为PHS520P-8-110V-FL PHS520P-8-220V-FL升级为PHS520P-8-220V-FL PHS520S-8-24V-DL升级为PHS520S-8-24V-DL PHS520S-8-110V-DL升级为PHS520S-8-110V-DL PHS520S-8-220V-DL升级为PHS520S-8-220V-DL PHS520D-8-24V-DL升级为PHS520D-8-24V-DL PHS520D-8-110V-DL升级为PHS520D-8-110V-DL PHS520D-8-220V-DL升级为PHS520D-8-220V-DL PHS520S-8升级为PHS520S-8 PHS520D-8升级为PHS520D-8 PHS520C-8升级为PHS520C-8 PHS520E-8升级为PHS520E-8 PHS520P-8升级为PHS520P-8 PHS520-M2 PHS520-M3 PHS520-M4 PHS520-M5 PHS520-M6 PHS520-M7 PHS520-M8 PHS520-M9 PHS520-M10 PHS520-M11 PHS520-M12 PHS520-M13 PHS520-M14 PHS520-M15 PHS520-BP PHS520SX-8-24V-FL PHS520SX-8-110V-FL PHS520SX-8-220V-FL PHS520DX-8-24V-FL PHS520DX-8-110V-FL PHS520DX-8-220V-FL PHS520SX-8-24V PHS520SX-8-110V PHS520SX-8-220V PHS520DX-8-24V PHS520DX-8-110V PHS520DX-8-220V PHS520SX-8 PHS520DX-8 PHS530S-10-24V PHS530S-10-110V PHS530S-10-220V PHS530D-10-24V PHS530D-10-110V PHS530D-10-220V PHS530S-10 PHS530D-10 PHS530C-10 PHS530E-10 PHS530P-10 PHS530-M7 PHS530-M8 PHS530-M9 PHS530-M10 PHS530-BP PHS530SX-10-24V-FL PHS530SX-10-110V-FL PHS530SX-10-220V-FL PHS530DX-10-24V-FL PHS530DX-10-110V-FL PHS530DX-10-220V-FL PHS530SX-10-24V PHS530SX-10-110V PHS530SX-10-220V PHS530DX-10-24V PHS530DX-10-110V PHS530DX-10-220V PHS530SX-10 PHS530DX-10 PHS530-M2 PHS530-M3 PHS530-M4 PHS530-M5 PHS530-M6 PHS540S-10 PHS540D-10 PHS541S-10 PHS541D-10 PHS540S-15 PHS540D-15 PHS541S-15 PHS541D-15 PHS320S-8 PHS320S-8-L PHS320-M2 PHS320-M3 PHS320-M4 PHS320-M5 PHS320-M6 PHS320-M8 PHS320-M10 PEC5-24V PEC5-110V PEC5-220V PEC5-24V-FL PEC5-110V-FL PEC5-220V-FL PEC5-24V-D PEC5-110V-D PEC5-220V-D PES5 PES5L-24V PES5L-110V PES5L-220V PEC5-22EX-24V PEC5-22EX-110V PEC5-22EX-220V PHS510S-6-24V PHS510S-6-110V PHS510S-6-220V PHS510S-6-24V-L PHS510S-6-110V-L PHS510S-6-220V-L PHS510S-6-24V-D PHS510S-6-110V-D PHS510S-6-220V-D PHS510S-6-24V-D-L PHS510S-6-110V-D-L PHS510S-6-220V-D-L PHS510S-6-24V-DL PHS510S-6-110V-DL PHS510S-6-220V-DL PHS510S-6-24V-DL-L PHS510S-6-110V-DL-L PHS510S-6-220V-DL-L PHS510C-6-24V PHS510C-6-110V PHS510C-6-220V PHS510C-6-24V-L PHS510C-6-110V-L PHS510C-6-220V-L PHS510C-6-24V-D PHS510C-6-110V-D PHS510C-6-220V-D PHS510C-6-24V-D-L PHS510C-6-110V-D-L PHS510C-6-220V-D-L PHS510C-6-24V-DL PHS510C-6-110V-DL PHS510C-6-220V-DL PHS510C-6-24V-DL-L PHS510C-6-110V-DL-L PHS510C-6-220V-DL-L PHS510P-6-24V PHS510P-6-110V PHS510P-6-220V PHS510P-6-24V-L PHS510P-6-110V-L PHS510P-6-220V-L PHS510P-6-24V-D PHS510P-6-110V-D PHS510P-6-220V-D PHS510P-6-24V-D-L PHS510P-6-110V-D-L PHS510P-6-220V-D-L PHS510P-6-24V-DL PHS510P-6-110V-DL PHS510P-6-220V-DL PHS510P-6-24V-DL-L PHS510P-6-110V-DL-L PHS510P-6-220V-DL-L PHS510D-6-24V PHS510D-6-110V PHS510D-6-220V PHS510D-6-24V-L PHS510D-6-110V-L PHS510D-6-220V-L PHS510D-6-24V-D PHS510D-6-110V-D PHS510D-6-220V-D PHS510D-6-24V-D-L PHS510D-6-110V-D-L PHS510D-6-220V-D-L PHS510D-6-24V-DL PHS510D-6-110V-DL PHS510D-6-220V-DL PHS510D-6-24V-DL-L PHS510D-6-110V-DL-L PHS510D-6-220V-DL-L PHS510E-6-24V PHS510E-6-110V PHS510E-6-220V PHS510E-6-24V-L PHS510E-6-110V-L PHS510E-6-220V-L PHS510E-6-24V-D PHS510E-6-110V-D PHS510E-6-220V-D PHS510E-6-24V-D-L PHS510E-6-110V-D-L PHS510E-6-220V-D-L PHS510E-6-24V-DL PHS510E-6-110V-DL PHS510E-6-220V-DL PHS510E-6-24V-DL-L PHS510E-6-110V-DL-L PHS510E-6-220V-DL-L PHS510-M2 PHS510-M3 PHS510-M4 PHS510-M5 PHS510-M6 PHS510-M7 PHS510-M8 PHS510-M9 PHS510-M10 PHS510-M11 PHS510-M12 PHS510-BP PHS520S-8-24V 升级为PHS520S-02-24V PHS520S-8-110V 升级为PHS520S-02-110V PHS520S-8-220V升级为PHS520S-02-220V PHS520S-8-24V-FL升级为PHS520S-02-24V-FL PHS520S-8-110V-FL升级为PHS520S-02-110V-FL PHS520S-8-220V-FL升级为PHS520S-02-220V-FL PHS520D-8-24V升级为PHS520D-8-24V PHS520D-8-110V升级为PHS520D-8-110V PHS520D-8-220V升级为PHS520D-8-220V PHS520C-8-24V升级为PHS520C-8-24V PHS520C-8-110V升级为PHS520C-8-110V PHS520C-8-220V升级为PHS520C-8-220V PHS520E-8-24V升级为PHS520E-8-24V PHS520E-8-110V升级为PHS520E-8-110V PHS520E-8-220V升级为PHS520E-8-220V PHS520P-8-24V升级为PHS520P-8-24V PHS520P-8-110V升级为PHS520P-8-110V PHS520P-8-220V升级为PHS520P-8-220V PHS520S-8-24V-D升级为PHS520S-8-24V-D PHS520S-8-110V-D升级为PHS520S-8-110V-D PHS520S-8-220V-D升级为PHS520S-8-220V-D PHS520D-8-24V-D升级为PHS520D-8-24V-D PHS520D-8-110V-D升级为PHS520D-8-110V-D PHS520D-8-220V-D升级为PHS520D-8-220V-D PHS520D-8-24V-FL升级为PHS520D-8-24V-FL PHS520D-8-110V-FL升级为PHS520D-8-110V-FL PHS520D-8-220V-FL升级为PHS520D-8-220V-FL PHS520C-8-24V-FL升级为PHS520C-8-24V-FL PHS520C-8-110V-FL升级为PHS520C-8-110V-FL PHS520C-8-220V-FL升级为PHS520C-8-220V-FL PHS520E-8-24V-FL升级为PHS520E-8-24V-FL PHS520E-8-110V-FL升级为PHS520E-8-110V-FL PHS520E-8-220V-FL升级为PHS520E-8-220V-FL PHS520P-8-24V-FL升级为PHS520P-8-24V-FL PHS520P-8-110V-FL升级为PHS520P-8-110V-FL PHS520P-8-220V-FL升级为PHS520P-8-220V-FL PHS520S-8-24V-DL升级为PHS520S-8-24V-DL PHS520S-8-110V-DL升级为PHS520S-8-110V-DL PHS520S-8-220V-DL升级为PHS520S-8-220V-DL PHS520D-8-24V-DL升级为PHS520D-8-24V-DL PHS520D-8-110V-DL升级为PHS520D-8-110V-DL PHS520D-8-220V-DL升级为PHS520D-8-220V-DL PHS520S-8升级为PHS520S-8 PHS520D-8升级为PHS520D-8 PHS520C-8升级为PHS520C-8 PHS520E-8升级为PHS520E-8 PHS520P-8升级为PHS520P-8 PHS520-M2 PHS520-M3 PHS520-M4 PHS520-M5 PHS520-M6 PHS520-M7 PHS520-M8 PHS520-M9 PHS520-M10 PHS520-M11 PHS520-M12 PHS520-M13 PHS520-M14 PHS520-M15 PHS520-BP PHS520SX-8-24V-FL PHS520SX-8-110V-FL PHS520SX-8-220V-FL PHS520DX-8-24V-FL PHS520DX-8-110V-FL PHS520DX-8-220V-FL PHS520SX-8-24V PHS520SX-8-110V PHS520SX-8-220V PHS520DX-8-24V PHS520DX-8-110V PHS520DX-8-220V PHS520SX-8  PHS520D-8-220V原装正品 PHS520DX-8  PHS520C-8-24V***现货 PHS530S-10-24V PHS530S-10-110V PHS530S-10-220V PHS530D-10-24V PHS530D-10-110V PHS530D-10-220V PHS530S-10 PHS530D-10 PHS530C-10 PHS530E-10 PHS530P-10 PHS530-M7 PHS530-M8 PHS530-M9 PHS530-M10 PHS530-BP PHS530SX-10-24V-FL PHS530SX-10-110V-FL PHS530SX-10-220V-FL PHS530DX-10-24V-FL PHS530DX-10-110V-FL PHS530DX-10-220V-FL PHS530SX-10-24V PHS530SX-10-110V PHS530SX-10-220V PHS530DX-10-24V PHS530DX-10-110V PHS530DX-10-220V PHS530SX-10 PHS530DX-10 PHS530-M2 PHS530-M3 PHS530-M4 PHS530-M5 PHS530-M6 PHS540S-10 PHS540D-10 PHS541S-10 PHS541D-10 PHS540S-15 PHS540D-15 PHS541S-15 PHS541D-15 PHS320S-8 PHS320S-8-L PHS320-M2 PHS320-M3 PHS320-M4 PHS320-M5   PHS510P-6-110V-D*** PHS320-M6 PHS320-M8   PHS520D-8-110V派克电磁阀*** PHS320-M10 PEC5-24V PEC5-110V PEC5-220V PEC5-24V-FL PEC5-110V-FL PEC5-220V-FL PEC5-24V-D PEC5-110V-D PEC5-220V-D PES5 PES5L-24V PES5L-110V PES5L-220V PEC5-22EX-24V PEC5-22EX-110V PEC5-22EX-220V D31FHE01C4NB00 4WRTE25E1-350L-4X/6EG24K31/A1M PGP315B296BIAB17-65GMAB13-1 OSP-P25-00000-03500 OSP-P25-00000-00350 R1 2FRE6A-2X/1LK 4MV PV180R1L1T1NUPR 341N3197-495900C2 R4R06 593 11 B5 4WRAE6W07-2X/G24K31/A1V HED8OH-2X/50K14AS HED80A2X100K14 P1A-S016DS-0050 RZMO-A-030/210  &＃39;LHDV33P-15P6-400/440 &＃39 8W-U12LB-G-SS-HT PV270R1K1T1NMMC &＃39;RE06M35W2V1KW20 &＃39; ZDB6VA1-4X100 R2 S10A1.0 D31FBE01EC1NF0010 RE06M35W2V1KW20 ZDB6VB2-42/315 DBW10A1-5X/200-6EG24N9K4 DL0H-2C-U24DC  DPZ0-TE-271-L5-1 18 DHZO-TE-071/L5 &＃39;PGH4-3X/040RR11VU2 &＃39;PHS510S-6-110V*** G123-825-001 G761-3004B OMR 50 151-0410| R4 1 TQ 43-A4 HHB20VXX22C 26 M-3SED6UK1X/350CG24N9K4 SCP01-250-24-07 R7 &＃39;023-07704-0 P6S2R1C9A2B000A1M207704

023-82164-0 P24S7R1E9A2B002B1M282164 SPC0311X05CB1 HED80A2X/200K14 341B3403 P3P-RJ-14-C4-00G

PHS510P-6-24V-D-L派克电磁阀*** D1VW002CNYCF D41FBE02FC2NKW0 D1VW020BNJEE SV20GA1-4X/ S1***1.0 GDC100X550 PHS530D-15 R7 R1 PK1ACE32-100 PK1ACE32-150 V12-080-MS-SV-S-000-0-0-080/053-HPS011-020/015

PARKER派克直动式气动阀 电磁换向阀PHS520S-02现货低价格销售

淄博鼎科贸易有限公司专业销售PHS系列方向控制阀 电磁阀 换向阀 电磁换向阀 气动阀 气控阀 电磁阀线圈 电磁线圈 电磁铁 PHS系列先导式电磁阀，大量库存现货，价格低货期短，正品行货，欢迎选购。

直接出线式&Din 43650插座式

手动功能：按钮式（标准型），

锁定螺杆式

线圈可更换

采用WCS（磨损补偿）系统PHS541D-15

PHS541D-15-110V-D

PHS541D-15-110V-DL

PHS541D-15-110V-D-L

PHS541D-15-110V-DL-L

PHS541D-15-12V-D

PHS541D-15-12V-D-L

PHS541D-15-240V-D

PHS541D-15-240V-DL

PHS541D-15-240V-D-L

PHS541D-15-240V-DL-L

PHS541D-15-24AC-D

PHS541D-15-24AC-D-L

PHS541D-15-24V-D

PHS541D-15-24V-DL

PHS541D-15-24V-D-L

PHS541D-15-24V-DL-L

PHS541D-15-L

PHS541S-15

PHS541S-15-110V-D

PHS541S-15-110V-DL

PHS541S-15-110V-D-L

PHS541S-15-110V-DL-L

PHS541S-15-12V-D

PHS541S-15-12V-D-L

PHS541S-15-240V-D

PHS541S-15-240V-DL

PHS541S-15-240V-D-L

PHS541S-15-240V-DL-L

PHS541S-15-24AC-D

PHS541S-15-24AC-D-L

PHS541S-15-24V-D

PHS541S-15-24V-DL

PHS541S-15-24V-D-L

PHS541S-15-24V-DL-L

PHS541S-15-L

PEC5-220V-D现货

PHM310-BT

PHP520D-8

PHP520S-8

PHP530D-10

PHP530S-10

PHP540D-15

PHP540S-15

PHS320S-8

PHS320S-8-110V-D

PHS320S-8-110V-DL

PHS320S-8-110V-D-L

PHS320S-8-110V-DL-L

PHS320S-8-12V-D

PHS320S-8-12V-D-L

PHS320S-8-240V-D

PHS320S-8-240V-DL

PHS320S-8-240V-D-L

PHS320S-8-240V-DL-L

PHS320S-8-24AC-D

PHS320S-8-24AC-D-L

PHS320S-8-24V-D

PHS320S-8-24V-DL

PHS320S-8-24V-D-L

PHS320S-8-24V-DL-L

PHS320S-8-L

PHS520-BP

PHS520C-8

PHS520C-8-110V-DL

PHS520C-8-110V-D-L

PHS520C-8-110V-DL-L

PHS520C-8-12V-D

PHS520C-8-12V-D-L

PHS520C-8-240V-D V

PHS520C-8-240V-DL

PHS520C-8-240V-D-L

PHS520C-8-240V-DL-L

PHS520C-8-24AC-D

PHS520C-8-24AC-DL

PHS520C-8-24AC-D-L

PHS520C-8-24AC-DL-L

PHS520C-8-24V-D

PHS520C-8-24V-DL

PHS520C-8-24V-D-L

PHS520D-8

PHS520D-8-110V-D

PHS520D-8-110V-DL

PHS520D-8-110V-D-L

PHS520D-8-110V-DL-L

PHS520D-8-12V-D

PHS520D-8-12V-D-L

PHS520D-8-240V-D

PHS520D-8-240V-DL

PHS520D-8-240V-D-L

PHS520D-8-240V-DL-L

PHS520D-8-24AC-D

PHS520D-8-24AC-DL

PHS520D-8-24AC-D-L

PHS520D-8-24AC-DL-L

PHS520D-8-24V-D

PHS520D-8-24V-DL

PHS520D-8-24V-D-L

PHS520D-8-24V-DL-L

PHS520D-8-L

PHS520E-8

PHS520E-8-110V-D

PHS520E-8-110V-DL

PHS520E-8-110V-D-L

PHS520E-8-110V-DL-L

PHS520E-8-12V-D

PHS520E-8-12V-D-L

PHS520E-8-240V-D

PHS520E-8-240V-DL

PHS520E-8-240V-D-L

PHS520E-8-240V-DL-L

PHS520E-8-24AC-

PHS520E-8-24AC-D-L

PHS520E-8-24V-D

PHS520E-8-24V-DL

PHS520E-8-24V-D-L

PHS520E-8-24V-DL-L

PHS520-M4

PHS520-M5

PHS520-M6

PHS520-M8

PHS520P-8

PHS520P-8-110V-D

PHS520P-8-110V-DL

PHS520P-8-110V-D-L

PHS520P-8-110V-DL-L

PHS520P-8-12V-D

PHS520P-8-12V-D-L

PHS520P-8-240V-D

PHS520P-8-240V-DL

PHS520P-8-240V-D-L

PHS520P-8-240V-DL-L

PHS520P-8-24AC-D

PHS520P-8-24AC-D-L

PHS520P-8-24V-D

PHS520P-8-24V-DL

PHS520P-8-24V-D-L

PHS520P-8-24V-DL-L

PHS520P-8-L

PHS520S-8

PHS520S-8-110V-D

PHS520S-8-110V-DL

PHS520S-8-110V-D-L

PHS520S-8-110V-DL-L

PHS520S-8-12V-D

PHS520S-8-12V-D-L

PHS520S-8-240V-D

PHS520S-8-240V-DL

PHS520S-8-240V-D-L

PHS520S-8-240V-DL-L

PHS520S-8-24AC-D V

PHS520S-8-24AC-D-L

PHS520S-8-24V-D

PHS520S-8-24V-DL

PHS520S-8-24V-D-L

PHS520S-8-24V-DL-L

PHS520S-8-L

PHS520SRK REPAIR KIT, PHS520 PHP520

PHS530-BP

PHS530C-10

淄博鼎科贸易有限公司

PHS530C-10-110V-D

PHS530C-10-110V-DL

PHS530C-10-110V-D-L

PHS530C-10-110V-DL-L

PHS530C-10-12V-D

PHS530C-10-12V-D-L

PHS530C-10-240V-D

PHS530C-10-240V-DL

PHS530C-10-240V-D-L

PHS530C-10-240V-DL-L

PHS530C-10-24AC-D

PHS530C-10-24AC-D-L

PHS530C-10-24V-D

PHS530C-10-24V-DL

PHS530C-10-24V-D-L

PHS530C-10-L

PHS530D-10

PHS530D-10-110V-D

PHS530D-10-110V-D

PHS530D-10-110V-D-L

PHS530D-10-110V-DL-L

PHS530D-10-12V-D

PHS530D-10-12V-D-L

PHS530D-10-240V-D

PHS530D-10-240V-DL

PHS530D-10-240V-D-L

PHS530D-10-240V-DL-L

PHS530D-10-24AC-D

PHS530D-10-24AC-D-L

PHS530D-10-24V-D

PHS530D-10-24V-DL

PHS530D-10-24V-D-L

PHS530D-10-24V-DL-L

PHS530D-10-L

PHS530E-10

PHS530E-10-110V-D V

PHS530E-10-110V-DL

PHS530E-10-110V-D-L

PHS530E-10-110V-DL-L

PHS530E-10-12V-D

PHS530E-10-12V-D-L

PHS530E-10-240V-D

PHS530E-10-240V-DL

PHS530E-10-240V-D-L

PHS530E-10-240V-DL-L

PHS530E-10-24AC-D

PHS530E-10-24AC-D-L

PHS530E-10-24V-D

PHS530E-10-24V-DL

PHS530E-10-24V-D-L

PHS530E-10-24V-DL-L

PHS530E-10-L

PHS530-M4

PHS530-M6

PHS530-M8

PHS530P-10

PHS530P-10-110V-D

PHS530P-10-110V-DL

PHS530P-10-110V-D-L

PHS530P-10-110V-DL-L

PHS530P-10-12V-D

PHS530P-10-12V-D-L

PHS530P-10-240V-D

PHS530P-10-240V-DL

PHS530P-10-240V-D-L

PHS530P-10-240V-DL-L

PHS530P-10-24AC-D

PHS530P-10-24AC-D-L

PHS530P-10-24V-D

PHS530P-10-24V-DL

PHS530P-10-24V-D-L

PHS530P-10-24V-DL-L

PHS530P-10-L

PHS530S-10

PHS530S-10-110V-D

PHS530S-10-110V-DL

PHS530S-10-110V-D-L

PHS530S-10-110V-DL-L

PHS530S-10-12V-D

PHS530S-10-12V-D-L

PHS530S-10-240V-D

PHS530S-10-240V-DL

PHS530S-10-240V-D-L

PHS530S-10-240V-DL-L

PHS530S-10-24AC-D

PHS530S-10-24AC-D-L

PHS530S-10-24V-D

PHS530S-10-24V-DL

PHS530S-10-24V-D-L

PHS530S-10-24V-DL-L

PHS530S-10-L

PHS530SRK REPAIR KIT, PHS530 PHP530

PHS540SRK REPAIR KIT, PHS541 PHP541

注意事项：

1、parker派克2位5通电磁阀安装时应注意阀体上箭头应与介质流向一致。不可装在有直接滴水或溅水的地方。parker派克2位5通电磁阀应垂直向上安装。

2、parker派克2位5通电磁阀应***在电源电压为额定电压的15%-10%波动范围内正常工作。

3、parker派克2位5通电磁阀安装后，管道中不得有反向压差。并需通电数次，使之适温后方可正式投入使用。

4、parker派克2位5通电磁阀安装前应***清洗管道。通入的介质应无杂质。阀前装过滤器。

5、parker派克2位5通电磁阀当发生故障或清洗时，为***系统继续运行，应安装旁路装置
